Why do I need this machine?
Why do I need this machine?
I need to drill small and medium-sized parts (drawers);
I have recurring cases of technical assistance due to drilling problems;
High rates of material waste due to improper drilling (rework);
I want to optimize my part marking and drilling processes, reducing production time;
I need to increase my productivity;
I have production batches starting at 30 parts;
If you have any of these problems, talk to us!
F400-CS Drilling Machine
Prices starting atUSD 60.000,00*
* Check shipping conditions
![loading icon](https://www.sellmaq.com/portugues/wp-content/uploads/img/loading.gif)
![F400-CS Drilling Machine](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/img1.jpg)
![Product manufactured in accordance with safety standards](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon1.png)
Product manufactured in accordance with safety standards
![100% Brazilian manufacturing](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon2.png)
100% Brazilian manufacturing
![1-year warranty](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon3.png)
1-year warranty
![Higher productivity](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon4.png)
Higher productivity
![Better ergonomics](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon5.png)
Better ergonomics
![Quick setup](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon6.png)
Quick setup
![Automatic loading and unloading](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon7.png)
Automatic loading and unloading
![Quick change chuck without using keys or wrenches](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon8.png)
Quick change chuck without using keys or wrenches
Why choose the F400-CS Drilling Machine?
Produces up to 42 pieces/minute;
Setup of up to 5 minutes;
Automatically loads and unloads;
Enables work with just 1 operator;
It can drill up to 3 parts at a time*;
Quick change of chucks without using keys or wrenches;
Drill bit-holder cart, Mobile monitor;
It has a drilling cleaner and a sawdust collecting belt;
LED lighting at the workstation.
*With triple pusher - Pieces up to 125mm wide
![Product manufactured in accordance with safety standards](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon1.png)
Product manufactured in accordance with safety standards
![100% Brazilian manufacturing](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon2.png)
100% Brazilian manufacturing
![1-year warranty](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon3.png)
1-year warranty
![Higher productivity](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon4.png)
Higher productivity
![Better ergonomics](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon5.png)
Better ergonomics
![Quick setup](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon6.png)
Quick setup
![Automatic loading and unloading](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon7.png)
Automatic loading and unloading
![Quick change chuck without using keys or wrenches](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon8.png)
Quick change chuck without using keys or wrenches
The F400-CS Drilling Machine is the ideal machine for drilling and marking parts in the furniture segment.
In addition to the automatic loading and unloading system, the machine has a computer-controlled digital display, a mobile drill bit-holder cart and LED lighting at the workstation.
![drill details](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/img6.jpg)
![Furniture](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/CS-icon9.png)
Furniture
Technological highlights

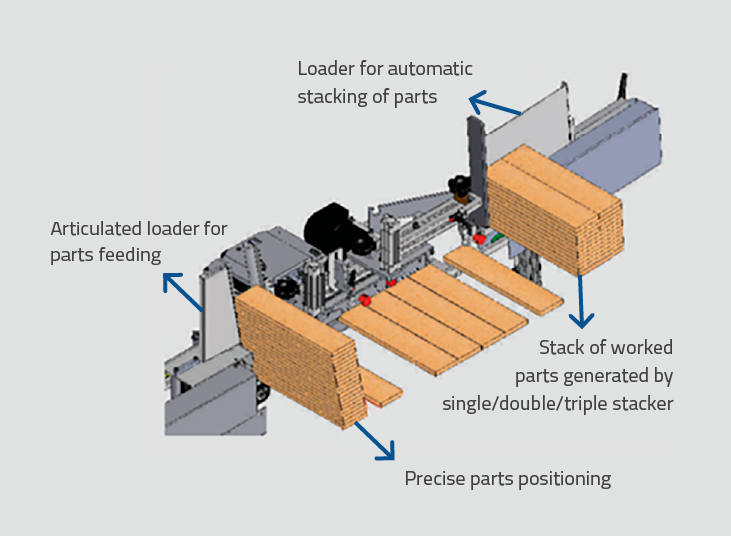

The F400-CS drill offers the possibility of working with just one operator and has an automatic loading and unloading system.

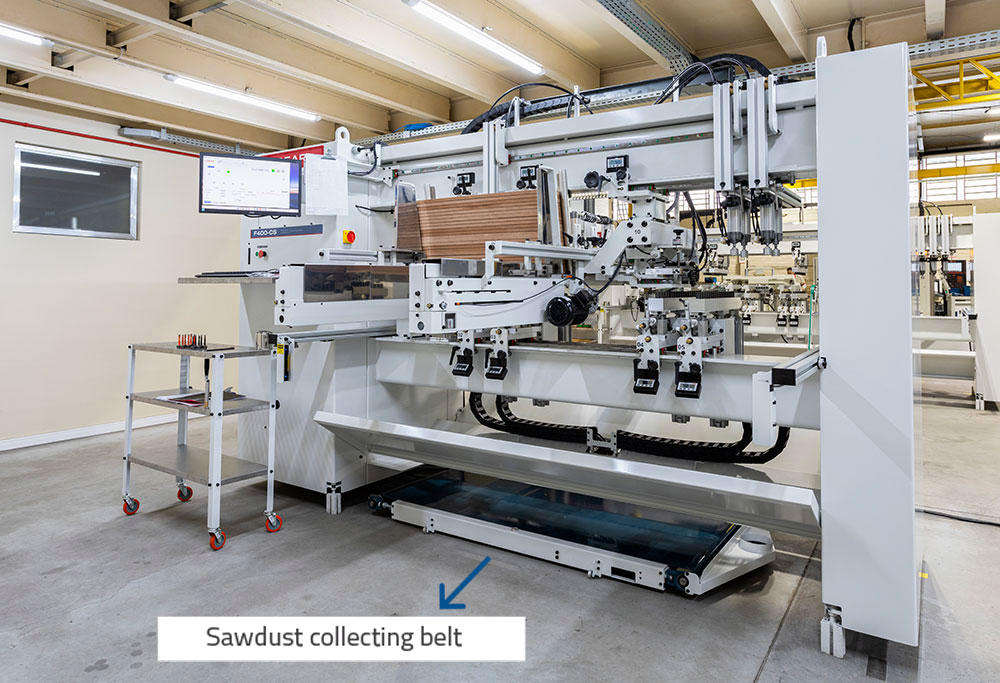

The sawdust collecting belt attached to the machine is also a very important feature, as it helps to reduce the accumulation of waste from the process.
![F400-CS Drilling Machine](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/img7-en.jpg)
![F400-CS Drilling Machine](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/img8-en.jpg)
The machine has the smallest setup on the market: simple, fast and without using keys or wrenches!
Before starting the production process, the operator must program the drilling on the machine's computer, selecting the heads, stages and speeds, placing the drill bits in the indicated locations, according to the drawing.
SAFETY IN THE PROCESS - 95% ERRORS REDUCTION:
If the dimensions placed on the digital display is different from the dimensions in the computer, the machine will not start the drilling process.
If these sets move during operation, the machine stops, preventing the process from proceeding incorrectly.
Computer/Mobile Monitor
![F400-CS Drilling Machine](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/img9.jpg)
Smart digital displays
![F400-CS Drilling Machine](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/img10.jpg)
![F400-CS Drilling Machine](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/img11.jpg)
![right arrow](https://www.sellmaq.com/portugues/wp-content/uploads/icons/arrow-green.png)
The minimum closing between heads is 96mm, making the variety of drillings in a single process even more flexible.
After configuration, the drilling process begins: the parts are fed into the machine and automatically guided to the end of the process, where they will be stacked awaiting collection by the operator. After drilling, the worked material passes through the parts cleaner, so that it is clean and ready for the next stage of the manufacturing process.

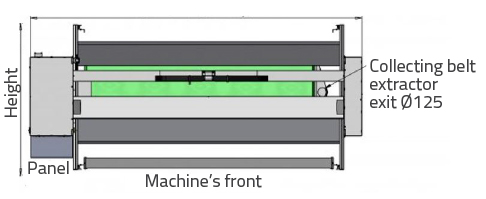

Equipment dimensions
![F400-CS Drilling Machine](https://www.sellmaq.com/portugues/wp-content/uploads/img/product/lidear/furadeiraF400CS/img12-en.jpg)
Dimensions | Measurement unit | F400-CS |
---|---|---|
Total Length | mm | 3200 |
Total Width | mm | 2400 |
Total height | mm | 1900 |
Net weight | kg | 2000 |
Packaging and delivery
F400-CS Complete Drilling Machine for export
F400-CS Drilling Machine | |
---|---|
Shipping guidance | The machine cannot be toppled over |
Packaging specifications | Packages wrapped in stretch film |
Total cubic measure | (Length x Width x Height) 3,2 x 2,4 x 1,9 = 14,6m³ |
Total net weight | 2000kg |
Total gross weight | 2010kg |
Total number of boxes | 02 Boxes |
