Why do I need this machine?

Click on the image to enlarge

Why do I need this machine?

I need to drill complex parts in a single operation;
I have recurring cases of technical assistance due to drilling problems;
High rates of material waste due to improper drilling (rework);
I want to optimize my part marking and drilling processes, reducing production time;
I need to increase my productivity;
I have production batches starting at 30 parts;

If you have any of these problems, talk to us!

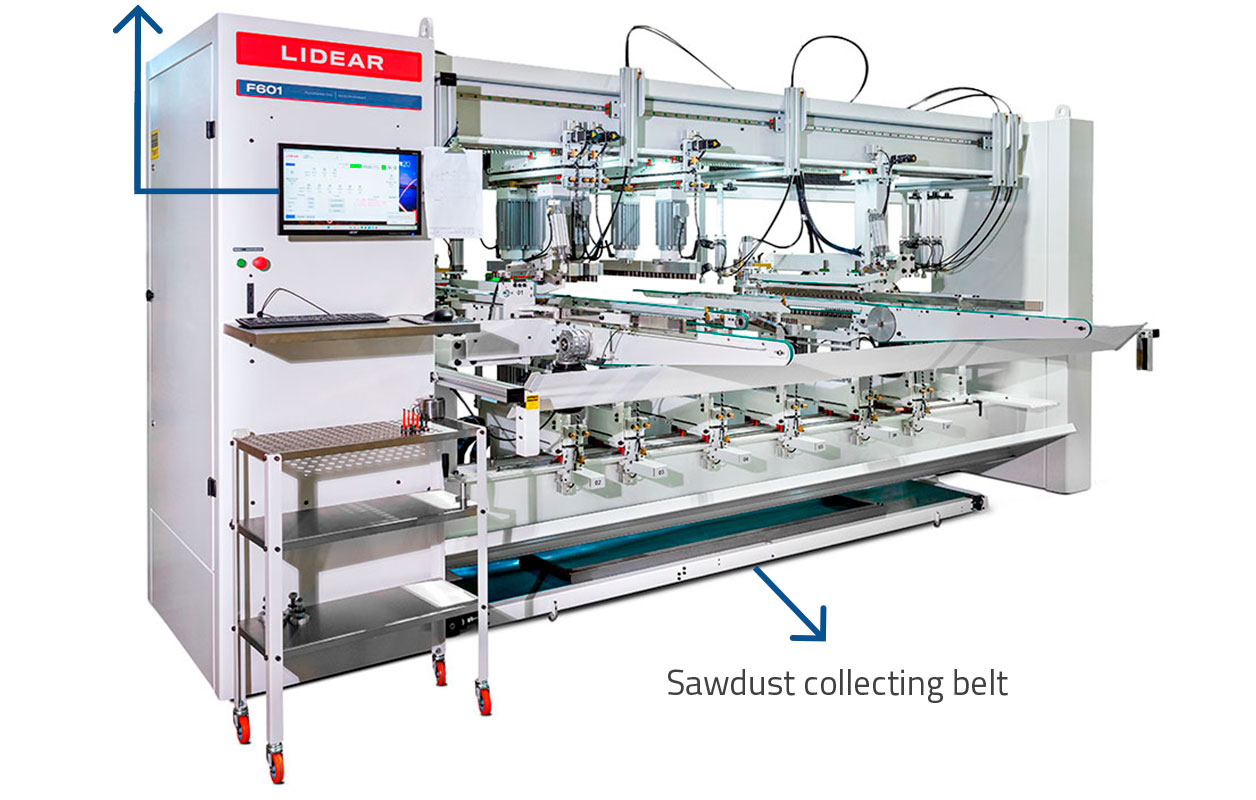

F601 drilling machine for furniture

* Check prices and shipping conditions

Modelo F500-B

100% Brazilian manufacturing

Product manufactured in accordance with safety standards

1-year warranty

Higher productivity

Quick change chuck without using keys or wrenches

Quick setup

Bipartite heads set

Servomotor

Why choose the F601 drilling machine?

Vertical and horizontal right heads and background stops controlled by servomotor; Servomotor for adjusting the depth of holes in the lower and upper heads.
Bipartite heads with independent activation, reducing energy consumption, noise and wear;
Average setup from 2 to 8 minutes;
95% reduction in setup-related errors;
It has a 3rd alignment belt for narrow and long pieces;
Quick change of chucks without using keys or wrenches;
Drill bit-holder cart, Mobile monitor;
It has a drilling cleaner and a sawdust collecting belt;
LED lighting at the workstation.
Performs drilling and marking of medium and high complexity parts of any size;

100% Brazilian manufacturing

Product manufactured in accordance with safety standards

1-year warranty

Higher productivity

Quick change chuck without using keys or wrenches

Quick setup

Bipartite heads set

Servomotor

The F601 Drilling Machine is the ideal equipment for those looking to unify the drilling and marking stages of parts in the furniture segment, increasing production and reducing errors in this process.

It is recommended for drilling complex parts in a single operation, due to the wide possibility of configuring the bipartite heads.

Furniture

Technological highlights

The F601 drilling machine stores up to 5000 drilling programs and has a set of bipartite heads, offering greater diversity of drilling to parts in the same operation. The heads and background stops are controlled by a servomotor, providing greater precision and agility to the drilling process. The sawdust collecting belt attached to the machine is also a very important feature, as it helps to reduce the accumulation of waste from the process.

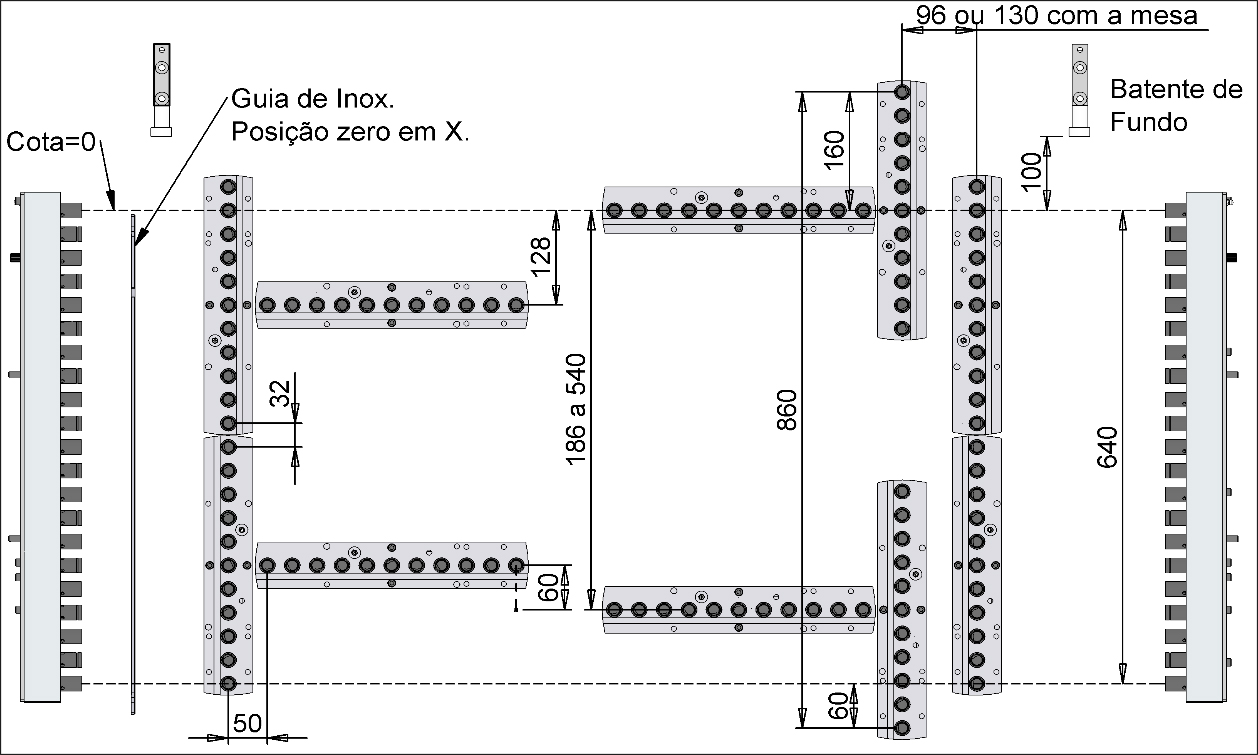

Drilling limits

The machine has the smallest setup on the market: simple, fast and without using keys or wrenches!

Before starting the production process, the operator must program the drilling on the machine's computer, selecting the heads, stages and speeds, placing the drill bits in the indicated locations, according to the drawing.

SAFETY IN THE PROCESS - 95% ERRORS REDUCTION:

If these sets move during operation, the machine stops, preventing the process from proceeding incorrectly.

Monitor and drill bit-holder cart

The minimum closing between heads is 96mm, making the variety of drillings in a single process even more flexible.

Position in X: Vertical heads

Position in Y: background stops

After setting up the machine, the drilling process begins: the parts are fed into the machine’s inlet and transported through the alignment belts, ensuring the correct position of the material to be drilled. The machine has light curtains with sensors that provide greater safety for the operator during the process.

At the end of the process, the processed material passes through the parts cleaner, so that it is clean and ready for the next stage of the process.

Optional extras:

In addition to having sets of horizontal, lower and upper heads, the drill press optionally offers the installation of a set of rear heads with 2 or 5 spindles, enabling the drilling of more complex parts in the same operation.

Set of 2-spindle heads:

Minimum distance between the tip of the part and the first hole: 5mm

Set of 5-spindle heads:

Minimum distance between the tip of the part and the first hole: 53mm

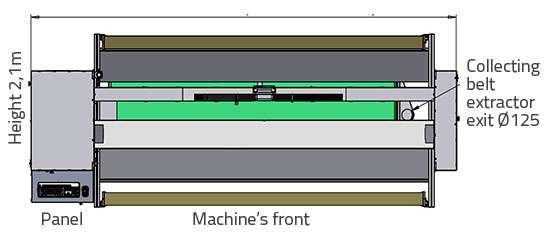

Equipment dimensions

Dimensions	Measurement unit	F601
Total Length	mm	4700
Total Width	mm	2900
Total height	mm	2100
Net weight	kg	4000

Packaging and delivery

F601 complete drilling machine for export

F601 drilling machine
Shipping guidance	Packages cannot be toppled over
Packaging specifications	Packages wrapped in stretch film
Total cubic measure	(Length x Width x Height) 4,7 x 2,3 x 2,2 = 23,8m³
Total net weight	4000kg
Total gross weight	4010kg
Total number of boxes	02 Boxes
